ELECTRICAL
Resolver Type: Absolute
Resolution: 4096 counts in 360
Linearity:
3% max. of full scale over temperature range

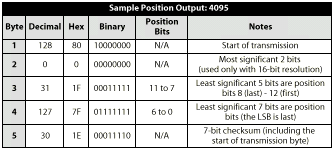

Output Format: Serial, natural binary, 5 bytes
Drive Type: RS-422A
Baud Rate: 19,200
Update Rate: >5 ms
Input Power:
Voltage: 12 VDC +20%, -10%
Inrush Current: <850 mA @ 12 V
Steady-State Current: <250 mA @ 12V for 3 ms |
MECHANICAL
Maximum Starting Torque: 5.0 oz.in @ 77F (360.04 gm/cm @ 25C):5.0
Moment of Inertia (gm/cm2): 45
Maximum Slew Speed (RPM): 5000ArialShaft size: 1 / 4 " (6.35 mm)
Maximum Shaft Load:
Axial: 40 lb. (18.14 kg)
Radial: 36 lb. (16.33 kg)
Bearing Life at Max. Mfr. Spec. (Rev.): 2 x 108 |
