Input Power:
AC: 105-135 V or 210-270 V, 50/60 Hz, 5 W
DC: 8 -30 VDC @ 0.25 A, exclusive of load (without using optical isolation, an external power supply is needed only for PNP outputs)
Operating Temperature: -10 F to +130 F(-2 C to +55 C)
Position Transducer: AVG Automation's RL100, E7R, E8R, or RL101 single-turn resolvers.
Maximum Cable Length between Resolver and DMS: 2500 ft (762 m), shielded twisted-pair
Output Format and Resolution:
BCD: 360, 1000, or 3600 counts-per-turn
Natural Binary: 1000, 1024, 3600 or 4096 counts-per-turn
Gray code: 256, 360, 512, 1000, 1024, 3600, or 4096 counts-per-turn
Resolver shaft speed: 3600 RPM (max.)
Resolver-to-digital decoder tracking speed: 1800 RPM
Display: 3 or 4 digits, 0.25" (6.35 mm) LEDs
PLC Sync. Input: (option)
Positive-edge: (LOW to HIGH) and
Negative-edge: (HIGH to LOW) triggered.
(See Input Logic for Voltage and Current specification: )
|
PC-handshake strobe: 30 s minimum width
Strobe Delay to Latch Data: 100 s
Transparent Mode/Microfreeze (Standard): Output data is continuously updated at full speed. The data is latched for 100 10 s within 30 s of a transition (HIGH to LOW or LOW to HIGH) at data transfer input.
Optical Isolation (Optional): 2500 Volts, on all I/Os except resolver

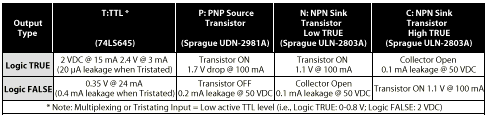

Input Logic (Channel Select, PLC Sync): 28 VDC Max: P-type:
Logic FALSE: 0 to 0.8 V @ 4 mA;
Logic TRUE: 2.4 V @ 3.2 mA
N-type:
Logic FALSE: 3.8 V @ 0.4 mA;
Logic TRUE: 0 to 0.8 V @ 3.2 mA
C-type:
Logic FALSE: 0 to 0.8 V @ 3.2 mA;
Logic TRUE: 3.8 V @ 0.4 mA
0 to 5 VDC Logic:
T-type:
Logic FALSE: 0 to 0.8 V @ 3.2mA;
Logic TRUE: 2.4 V @ 0.4 mA
Channel Select Timing:
Input Multiplexing: 100 ms from channel select
Output Multiplexing: 15 s from channel select |
