Input Power:
AC: 105-135 VAC or 210-270 VAC, 50/60 Hz, 5 W
DC: 8-30 VDC @ 0.25 A exclusive of load (without optical isolation, an external power supply is needed only for PNP outputs)
Operating Temperature:
-10 F to +130 F (-23 C to +55 C)
Position Transducer: AVG Automation's RL100, E7R, E8R, or RL101 single-turn resolvers.
Output Format and Resolution:
BCD: 0360, 1000 or 3600 counts-per-turn
Natural Binary: 1000, 1024, 3600, 4096, or 8192 counts-per-turn
Gray code: 0256, 0360, 0512, 1000, 1024, 3600, 4096, or 8192 counts-per-turn
Maximum Cable Length between Resolver and DM5: 2500 ft, shielded |
Resolver shaft speed: 3600 RPM (max.)
Resolver-to-digital decoder tracking speed: 1800 RPM
Display: 3- or 4-digits, 0.3" (7.62 mm) LEDS
Offset Capability: Programmable full scale

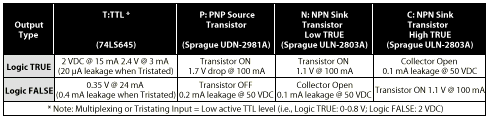

PLC Synch Circuit (optional):
Input Logic: 0 to 24 VDC logic
Logic False: 0 to 0.8 V @ 3.2 mA
Logic True: 2.4 V @ 0.4 mA, Positive- and negative-edge triggered.
PC Handshake strobe: 30 s minimum width
Data Latch Delay: Adjustable 200 s to 30 ms. Factory set at 3 ms 20%
Optical Isolation (optional): 2500 Volts, on all I/Os except resolver |
